CH300 (Exposed)
The Compact Hinge is a hydraulic hinge product that is mounted on a glass door so that the door can be opened and closed smoothly.

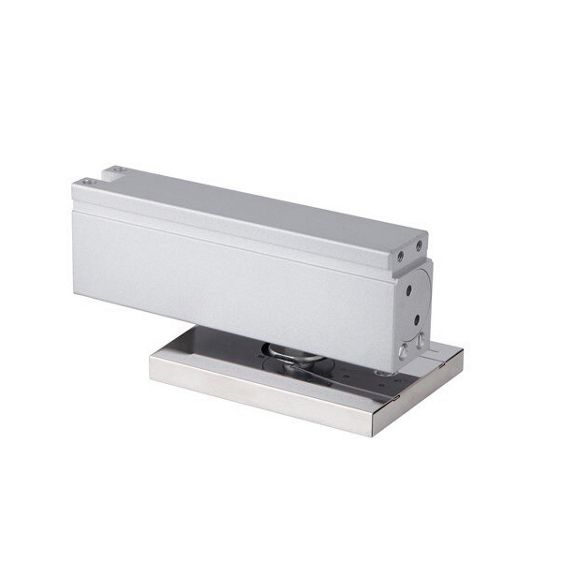

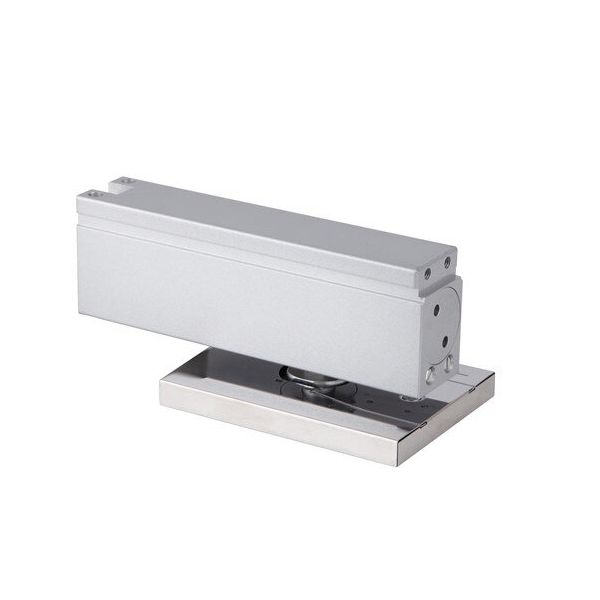

CH200 (Concealed)
CH200 is a hydraulic flush type hinge product that is installed on glass doors and middle doors so that the door can be opened and closed smoothly.
Product Features
ㆍ Speed can be adjusted with separate primary and secondary control valves
ㆍ Power fixed type (optional): KS 1, 2, 3
ㆍ Basic: both sides stop type (stop angle 90˚)
ㆍ Option: Non-stop type on both sides (N)
ㆍ Door load: 20~60kg
ㆍ Product size: 186mm X 60mm X 38mm
ㆍ Simple construction possible as no separate floor construction is required
product composition
Installation information
Manual
