CH200 (Concealed)
CH200 is a hydraulic flush type hinge product that is installed on glass doors and middle doors so that the door can be opened and closed smoothly.

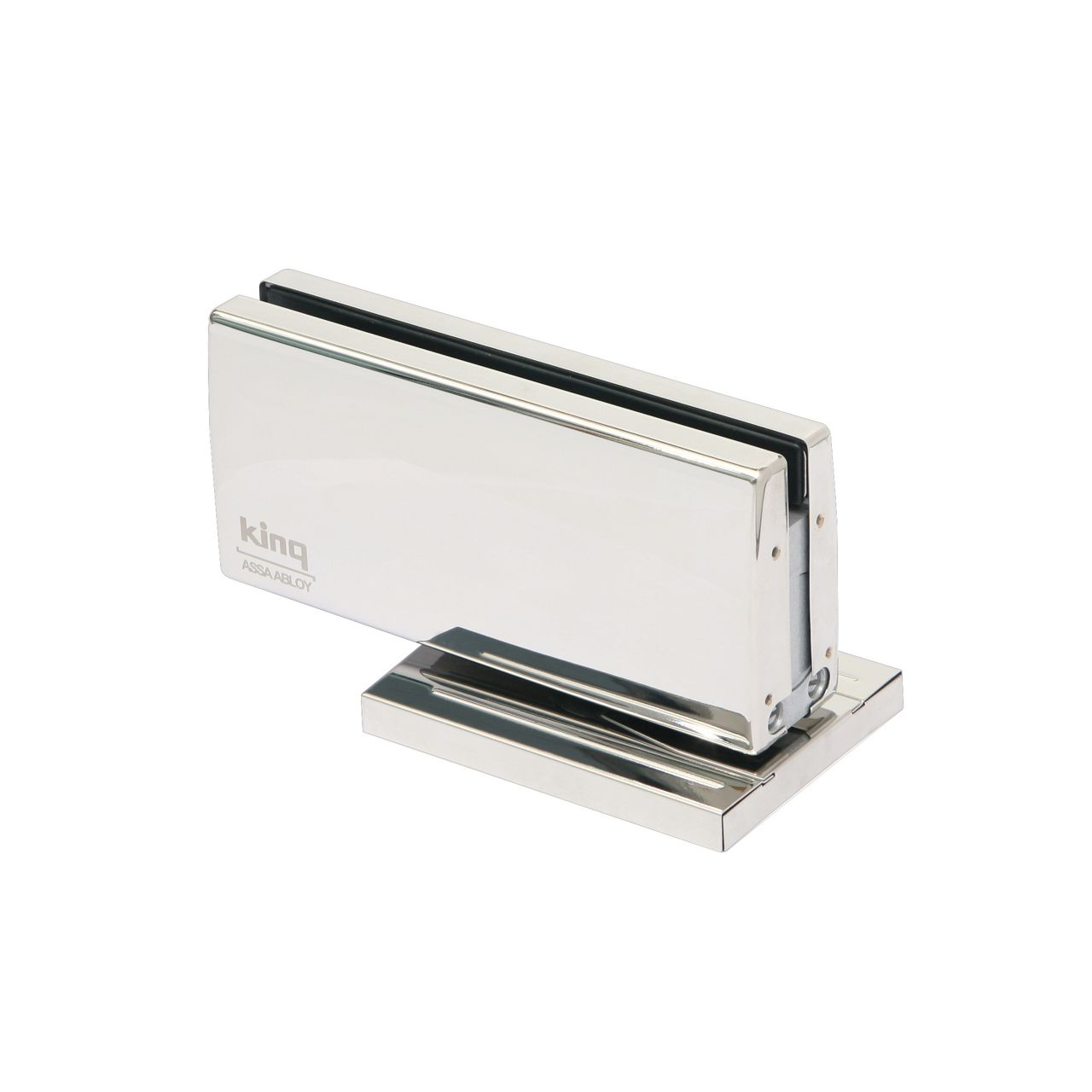

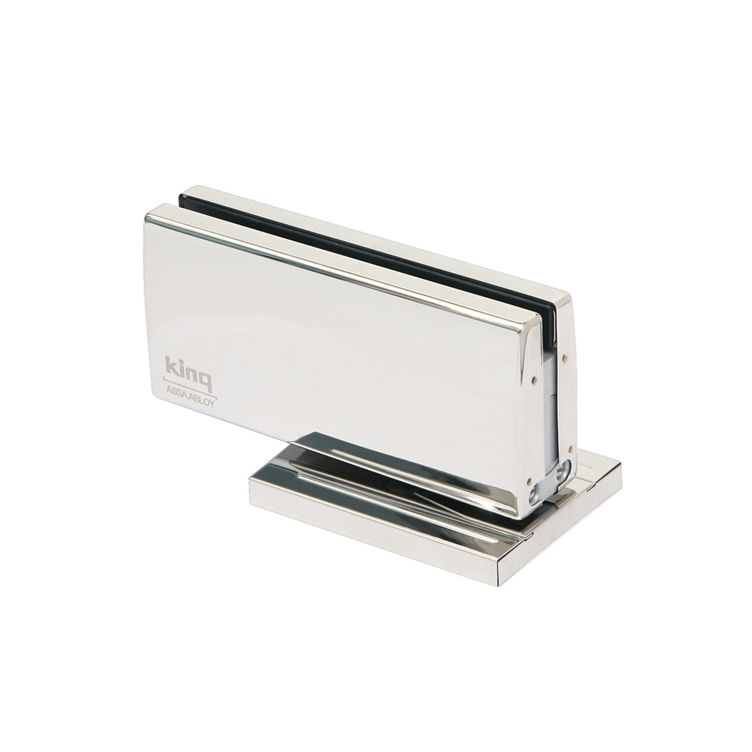

CH300 (Exposed)
The Compact Hinge is a hydraulic hinge product that is mounted on a glass door so that the door can be opened and closed smoothly.
Product Features
ㆍ 90 degree hold open -Maximum opening angle 115 degrees
ㆍ Glass door size Max: (W)900mm X (H)2100mm
ㆍ Glass thickness: 10T~12T
ㆍ 1st and 2nd speed control -Use of stainless steel cover
ㆍ Option: Non-stop
Purpose
ㆍ Used for outdoor and indoor glass doors
ㆍ Glass door weight 40~60kg available
ㆍ Easy to install without digging the floor
product composition
Installation information
