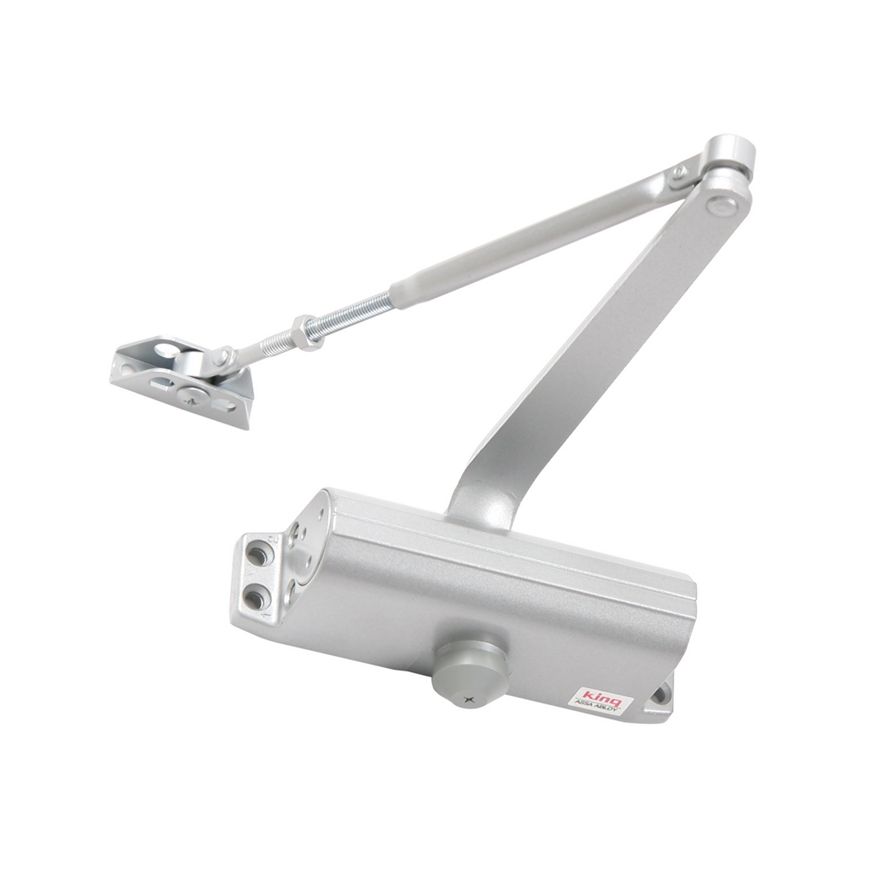

K70 Series
Features
ㆍ Aluminum Alloy Body
ㆍ Standard, separate and independent, latch and sweep intensity valve
ㆍ Non-handed
ㆍ Different working power by each model
ㆍ Rack-and-pinion design
ㆍ All standard arm applications allow doors to swing 180 degrees, conditions permitting.
Optional Features
ㆍ Built in hold-open function.
ㆍ Tri-packedColors Available
ㆍ AL : Aluminum
ㆍ BZ : Hardware Bronze (Gold)
ㆍ DU : Storefront BronzeSelection Chart
MODEL CLOSER CONTROLS HOLD OPEN REMARKS Latching Sweep Standard Parallel 70 ● ● - - 170 (STAND) ● ● ● - Built-in hold open type 170P (PARALLEL) ● ● - ● Normal Power Range Closers
Standard Installation Parallel installation W x H of Door(mm) Weight of Door(kg) Non Hold-Open Hold-Open Non Hold-Open Hold-Open 71 171 71P 171P 800 x 1800 10-30 72 172 72P 172P 900 x 2100 25-45 STANDARD FEATURES
ㆍAluminum Alloy Body
Closer bodies are constructed of special aluminum alloy, carefully selected to accommodate interactive steel component and operation conditions.
ㆍRack & Pinion Operation
Provides a smooth constant control of the door through its full opening and closing cycle. 180º.door swing can be achieved when door, frame, hardware and arm function do not interfere
ㆍNon-handed
With few exceptions all K70 Series door closers are non-handed and can be installed on either right or left hand swing doors. Pinion shaft extends vertically through the closer body in both directions.
ㆍSweep Speed Control Valve
Allows adjustment of door speed from the door’s full open position down to approximately 10˚ from the closed position.
ㆍLatch Speed Control Valve
Allows adjustment of door speed from approximately 10˚ down to the door's fully closed position.
