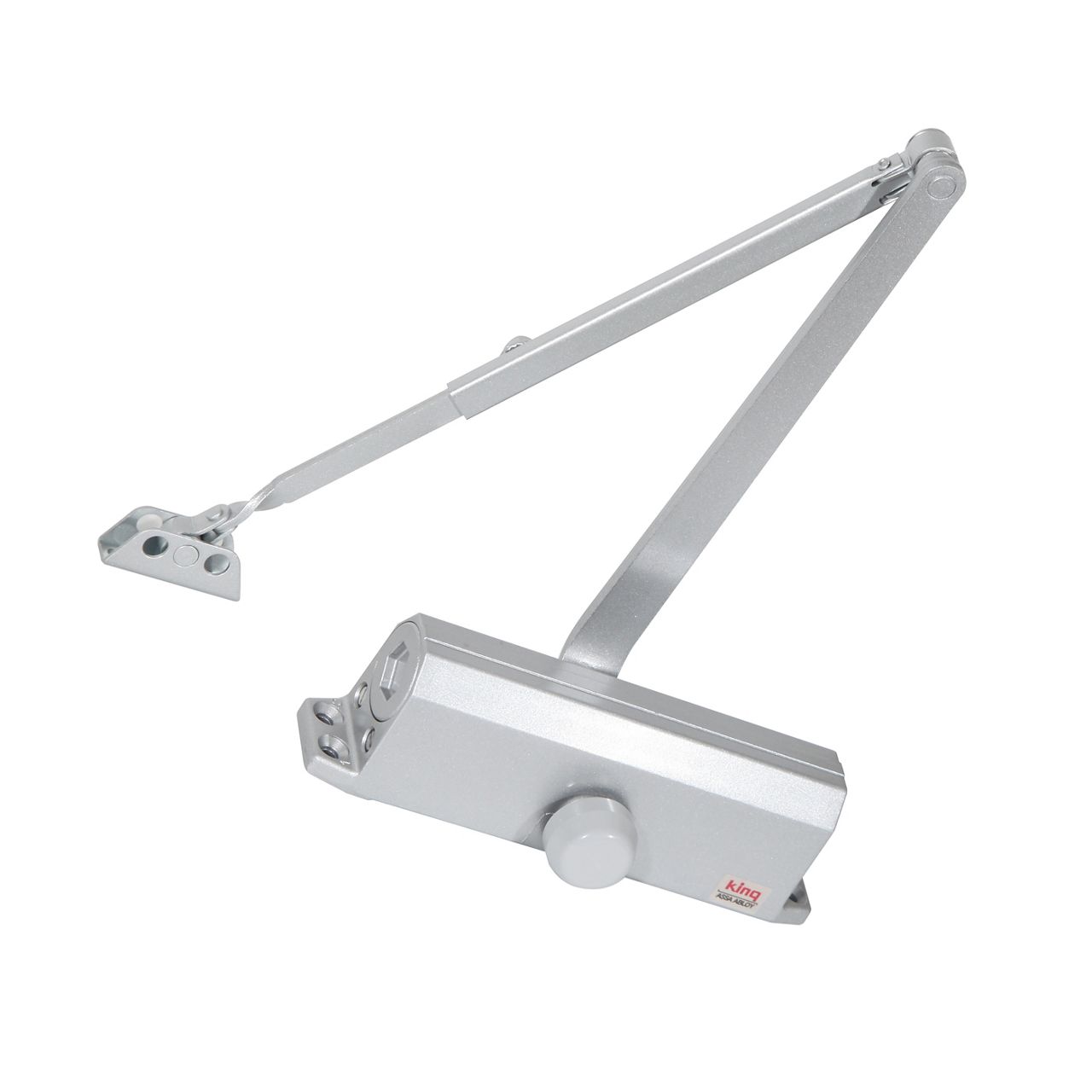

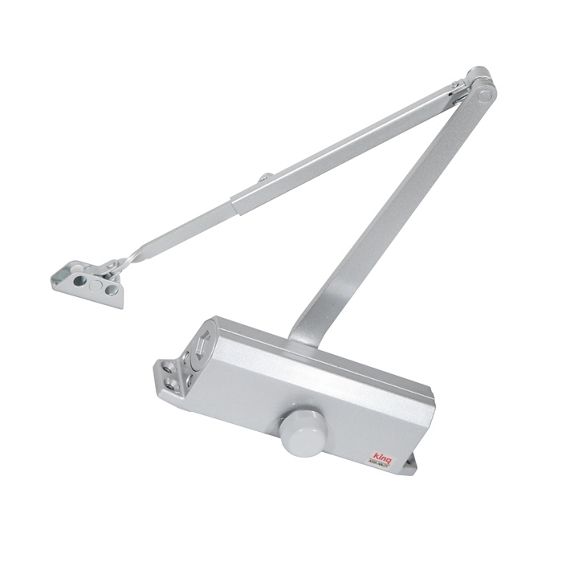

NSK800 Series
Features
ㆍ Aluminum Alloy Body
ㆍ Rack-and-pinion design
ㆍ Non-handed
ㆍ Fixed Power: 2/3/4/5
ㆍ Adjustable power : size BF-4 or 1-6
ㆍ Tri-packed for regular arm, top jamb and parallel arm mounting
ㆍ Independent latch and sweep
Optional Features
ㆍ Delayed action
ㆍ Hold open
ㆍ Molded cover
ㆍ Back checkCOMPLIANCE STANDARD
ㆍ ANSI/BHMA A156.4, Grade1 certified
ㆍ UL listed
ㆍ ADA compliant (BF-4)Normal Fixed/Adjustable Sized Closers
Standard Installation W x H of Door (mm) Weight of Door (kg) Body Size (mm) NSK820 800 x 2100 25 – 45 46 x 204 x 70 NSK830 950 x 2100 40 – 65 46.3 x 226 x 70.3 NSK840 1050 x 2400 60 – 85 46.3 x 226 x 70.3 NSK850 1200 x 2400 80 - 120 NSK800 Adjustable power : size BF - 4 or 1 - 6 Cross Reference
Company CAL ROYAL DORMA DOR-O-MATIC HAGER K2 LCN NORTON PDQ SARGENT Model 300 7400 SC60 5300 QDC300 1260 1600 3100 1130 STANDARD FEATURES
ㆍAluminum Alloy Body
Closer bodies are constructed of special aluminum alloy, carefully selected to accommodate interactive steel component and operation conditions.
ㆍRack & Pinion Operation
Provides a smooth constant control of the door through its full opening and closing cycle. 180˚.door swing can be achieved when door, frame, hardware and arm function do not interfere
ㆍNon-handed
With few exceptions all NSK800 Series door closers are non-handed and can be installed on either right or left hand swing doors. Pinion shaft extends vertically through the closer body in both directions.
ㆍSweep Speed Control Valve
Allows adjustment of door speed from the door’s full open position down to approximately 10˚ from the closed position.
ㆍLatch Speed Control Valve
Allows adjustment of door speed from approximately 10˚ down to the door's fully closed position.
ㆍCompliance Standards
ANSI/BHMA A156.4, Grade1 certified.
UL listed.ㆍTri-Packed
NSK800 Series come with screws, brackets and soffit plates to allow for regular, top jamb, and parallel arm installations
ㆍAdjustable Back-check Valve
Provides control of the door in the opening cycle, beginning at approximately 75˚ of door opening. it cushions the door opening when the door is forcibly opened beyond its pre-adjusted limits.
ㆍMulti-Sized Door Closer
Adjustable through the power range of sizes BF – 4 / 1 - 6.
NSK800BF (BF-4) also confirms to the BF opening force requirements of the A.D.A and ANSI/BHMA standard A117.1 for interior doors.CERTIFICATION
ㆍ ANSI/BMHA A156.4 , Grade 1 certified
ㆍ UL /cUL listed
ㆍ UL10C listed for positive pressure fire test
ㆍ NSK800BF (BF-4) model is designed to comply with requirements for the Americans with Disability Act (A.D.A) and ANSI standard A117.1DELAYED ACTION
ㆍAdjustable Delayed Action Closing
An optional hydraulic feature that add a third speed range to closing cycle. This feature becomes effective when the door is opened and released at any point beyond 70˚. The amount of time delay depends upon the combination of the angle of door released and valve adjustment. The valve can be adjusted with 4mm hex key from no delay time up to maximum delay times of :
Door opened Approximate Time of Delay Cycle 180˚ 4~5 minutes 120˚ 2~3 minutes 90˚ 25~30 seconds ㆍPressure Relief Safety Valve
The delayed action hydraulic system contains a pressure relief valve. Any time the door is forced toward the closed direction while it is in the closing cycle, the valve will open and permit the door to close. This prevents damage to door, frame and closer.
ㆍSuggested Application
Delayed action closing allows slow-moving traffic to clear the opening before the door closer's normal closing cycle begins. This feature can be helpful in health care facilities such as hospitals and nursing homes. It provides sufficient time for persons on crutches or in wheelchairs to pass through a door without concern of closing. At the same time, it can accommodate the facility's staff with movement of food service carts, bed, and other wheeled traffic.
Use of delayed action closers on many doors throughout industrial and commercial buildings can also assist the flow of traffic. Locations where additional time to clear the opening is advantageous are doors between office, doors to workshops or laboratories, kitchens and food processing area.ㆍNon-Hold Open
Self-closes door every time door is opened.
Auxiliary stop (by others) required.Model Spring sizes Door Weight NSK800 1 – 5 15 - 120Kg NSK800BF BF - 4 15 - 85Kg ㆍHold Open
Achieved by means of friction or ball and detent / roller. Friction hold open has a range of 90˚ to 180˚ using a template location and mechanical adjustment.
Hold open arm door closers are not permitted to be use on fire door assemblies.STANDARD PARTS
OPTIONAL PARTS AVAILABLE SPECIAL ORDER
MOLDED COVER
PARTS
